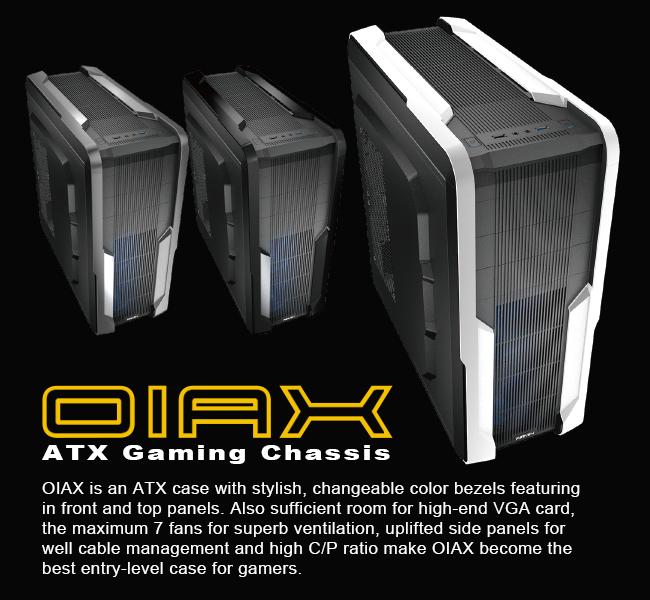

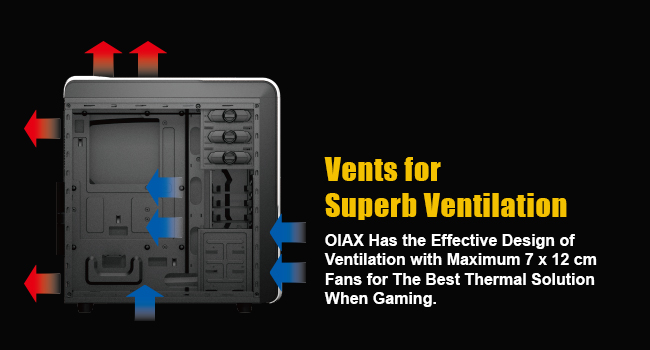

Two new cases from Reeven OIAX and PERSES that feature great ventilation with up to a maximum of 7 fans, and support for high end graphic card up to 360mm.
| Model Number | RE-A18001-[B/W/T] |
|---|---|
| M/B Type | ATX, Micro ATX, Mini ITX |
| Material | SECC with Black Coating, ABS |
| Dimension | 464.5*488*180mm |
| 5.25″ Drive Bay | 3 |
| 3.5″ Drive Bay | 3 |
| 2.5″ Drive Bay | 3 |
| I/O Panel | USB3.0*1, USB2.0*1, Audio HD |
| Expansion Slot | 7 |
| Cooling Fan (Top) | 120mm x 2 (Optional) |
| Cooling Fan (Front) | 120mm x 2 (Optional) |
| Cooling Fan (Side) | 120mm x 2 (Optional) |
| Cooling Fan (Rear) | 120mm x 1 (Installed) |
| Maximum CPU Cooler Height | 155mm |
| Maximum Graphic Card Length | 295mm |
| Model Number | RE-A18002-[B/S/T] |
|---|---|
| M/B Type | ATX, Micro ATX, Mini ITX |
| Material | SECC with Black Coating, ABS |
| Dimension | 438*430*180mm |
| 5.25″ Drive Bay | 2 |
| 3.5″ Drive Bay | 3 |
| 2.5″ Drive Bay | 3 |
| I/O Panel | USB3.0*1, USB2.0*1, Audio HD |
| Expansion Slot | 7 |
| Cooling Fan (Top) | 120mm x 2 (Optional) |
| Cooling Fan (Front) | 120mm x 2 (Optional) |
| Cooling Fan (Side) | 120mm x 2 (Optional) |
| Cooling Fan (Rear) | 120mm x 1 (Installed) |
| Maximum CPU Cooler Height | 155mm |
| Maximum Graphic Card Length | 295mm |
